Roadway Reconfiguration

A Roadway Reconfiguration, sometimes referred to as a Road Diet, Two-Way Left-Turn Lane (TWLTL), or Roadway Reutilization, is a common treatment where there is a high density of driveways and intersections or where there is a history of crashes related to turning vehicles. Roadway reconfigurations have been proven to reduce vehicle crashes and can also improve bicyclist and pedestrian safety by providing bicycle lanes and sidewalks and reduce crossing distances on roadways.

A common roadway reconfiguration consists of converting a four-lane undivided roadway into a three-lane roadway (one lane in each direction plus a shared center left-turn lane). These conversions often repurpose unused roadway width or space which can improve operations and walkability within the community.

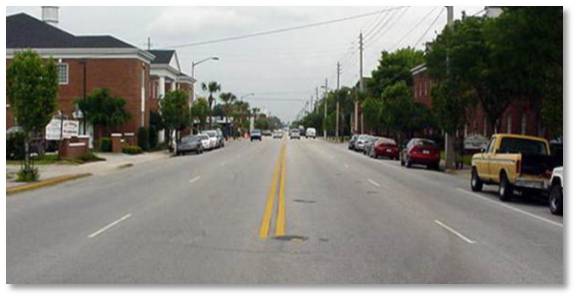

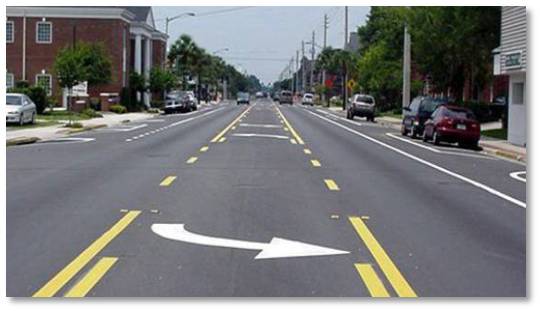

A roadway before and after a roadway reconfiguration from a four-lane undivided highway to three-lane roadway.

Roadway reconfigurations may involve different roadway layouts depending on the community, roadway environment and operations but they all have the same shared center left-turn lane. Other layouts include converting a four-lane undivided roadway to a five-lane roadway or converting a two-lane roadway into a three-lane roadway.

Benefits of Roadway Reconfigurations
  • Reduction of rear-end and left-turn crashes due to the dedicated left-turn lane for driveways and intersections.
  • Eliminates traffic weaving between lanes to avoid stopped or slow vehicles.
  • Existing travel lanes can be repurposed to provide a dedicated turn lane to improve safety and operations to and from businesses or residences as well as providing opportunities to install pedestrian refuge islands, curb extensions, sidewalk, bicycle lanes, on-street parking or transit facilities.
  • Can often be implemented through low-cost restriping/repainting projects or routine paving projects. For concrete roadways, consideration should be given when restriping roadways to avoid concrete joints which may appear to be marking travel lanes.
  • Can decrease pedestrian crossing distance or provide for more opportunities for pedestrian refuge areas which reduces exposure to vehicular traffic.
  • Regulates speed and helps to slow traffic down. Speeds are more consistent within one travel lane per direction.
DIagram showing a four-lane undivided highway. Before reconfiguration, traffic travels in both directions.

Before a roadway configuration

Diagram shoiwng a roadway after reconfiguration. Includes bike lanes and dedicatd turn lanes.

After a roadway reconfiguration

A three-lane roadway with dedicated left turn lanesRoadway reconfigurations have proven to improve safety by providing a dedicated center left-turn lane for left-turning traffic. This decreases rear-end and left-turning crashes as well as provides opportunities to have dedicated space and separation of non-motorized traffic. Roadway reconfigurations may have several different layouts depending on the roadway environment and use and could include different roadway features such as bicycle lanes, sidewalks, parking, or transit facilities. Based on WisDOT research, safety effectiveness is estimated as follows for some common implementations:

  • 4-lane to 3-lane conversion
    • 29% reduction in all crashes
    • 37% reduction in injury crashes
  • 4-lane to 3-lane conversion with bicycle lanes
    • 38% reduction in all crashes
    • 64% reduction in injury crashes
  • 2-lane to 3-lane conversion
    • 20% reduction in all crashes
    • 26% reduction in injury crashes
    • 38.7% reduction in rear-end crashes
  • 4-lane to 5-lane conversion
    • 30% reduction in non-intersection crashes

There are many factors that are considered before implementing a roadway reconfiguration such as traffic volumes on the main roadway and side roads, type and location of access points, number and spacing of intersections, and crash history. Roadway reconfigurations are most commonly used on 4-lane undivided roadways with around 20,000 vehicles per day or less. In some cases, roadway reconfigurations have shown success on roadways with traffic volumes as high as 25,000 vehicles per day. These thresholds vary depending on how much traffic is on the side road and how many left turning vehicles exist.

Aerial view of a three-lane roadway with left-turn lanes

WisDOT, county highway departments and municipal forces have installed numerous roadway reconfigurations on Wisconsin roadways. Below are several examples of successful implementations:

  • US 45, between WIS 17 and WIS 70/East Wall St - City of Eagle River, Vilas County
  • WIS 13, between Lower Dam Rd 8th St – City of Park Falls, Price County
  • US 12/WIS 29, between 9th St to 21st St – City of Menomonie, Dunn County
  • US 8, between Wye St and County W – City of Barron, Barron County
  • WIS 46, between Griffin St and Wisconsin Ave/Second St – City of Amery, Polk County
  • WIS 33, Hagen Rd to Boma Rd – City of La Crosse, La Crosse County
  • WIS 27 – City of Sparta, Monroe County
  • US 14 – City of Viroqua, Vernon County
  • US 61, between WIS 133 and County U – Village of Potosi, Grant County
  • Business 151, between Staley Ave and Keystone Pkwy – City of Platteville, Grant County
  • WIS 31, between WIS 38 and 4 Mile Road - Village of Caledonia, Racine County
  • WIS 32, between 3 Mile Road and 4 Mile Road – Village of Caledonia, Racine County

Myth: A roadway reconfiguration may divert traffic away from the area and local businesses, affecting economic growth.

False – Roadway reconfigurations can improve a corridor’s quality of life and the appeal or “livability” of an area. Livability is a term used to describe the tie between the quality and location of transportation facilities to broader opportunities such as access to jobs, affordable housing, and safer streets, which all promote economic development. For the majority of projects, traffic volumes remain consistent; however, some have seen a decrease in vehicular traffic and an increase in bicycle or pedestrian traffic.

Myth: Traffic will backup.

False – Studies on existing corridors have shown that roadway reconfigurations can improve traffic flow and reduce crashes since left-turning vehicles are removed from the through travel lanes.

Myth: Roadway reconfigurations are too narrow for large trucks and other vehicles.

False – WisDOT works with community leaders and gathers data to understand the types of vehicles and users on the roadway. Engineers evaluate large vehicle paths and ensure that lanes are wide enough to accommodate large vehicles like freight trucks, fire trucks, garbage trucks, school buses, farm machinery and transit buses. Larger vehicles that are wider than one lane can extend into the center lane, as needed, as they navigate roadways. In fact, these conversions present an opportunity for the community to reevaluate the roadway space for large vehicles by including delivery parking areas, improved intersection turning areas, and protected bus pullouts for pickup or drop-off. Roadway reconfigurations can also incorporate wider shoulders, which increase the separation between pedestrians and large vehicles.

Myth: Roadway reconfigurations delay emergency response times

False – Roadway reconfigurations can improve emergency response times. In fact, emergency vehicles can utilize the center turn lane when responding to an incident.

Multilane roadways can be awkward and unsafe for emergency responders and can slow response times. Drivers are often uncertain about where to go to allow emergency responders to pass.

    Fire truck struggles to find a path through traffic on a four lane roadway

    Before
    A fire truck struggling to find a path
    Photo credit: U.S. Department of Transportation

    ...
    After

    An easy navigable two-way left-turn lane.
    Photo credit:U.S. Department of Transportation
